table length:

4000 mm

table width:

2000 mm

burner heads:

6000 Watt

weight of the machine ca.:

14 t

dimensions of the machine ca.:

13 x 2,4 x 5,4 m

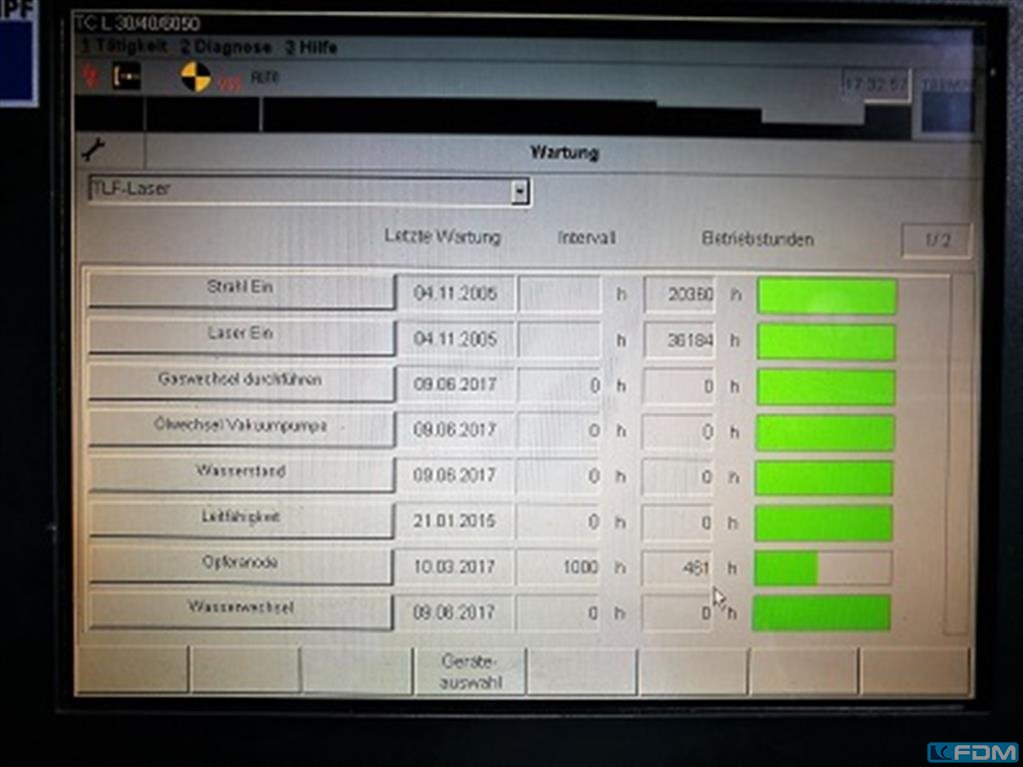

Working hours:
BEAM ON: 20.380 h (06/09/2017)
LASER ON: 36.184 h (06/09/2017)

Machine configuration:
- Closed machine frame with integrated laser unit Laser unit

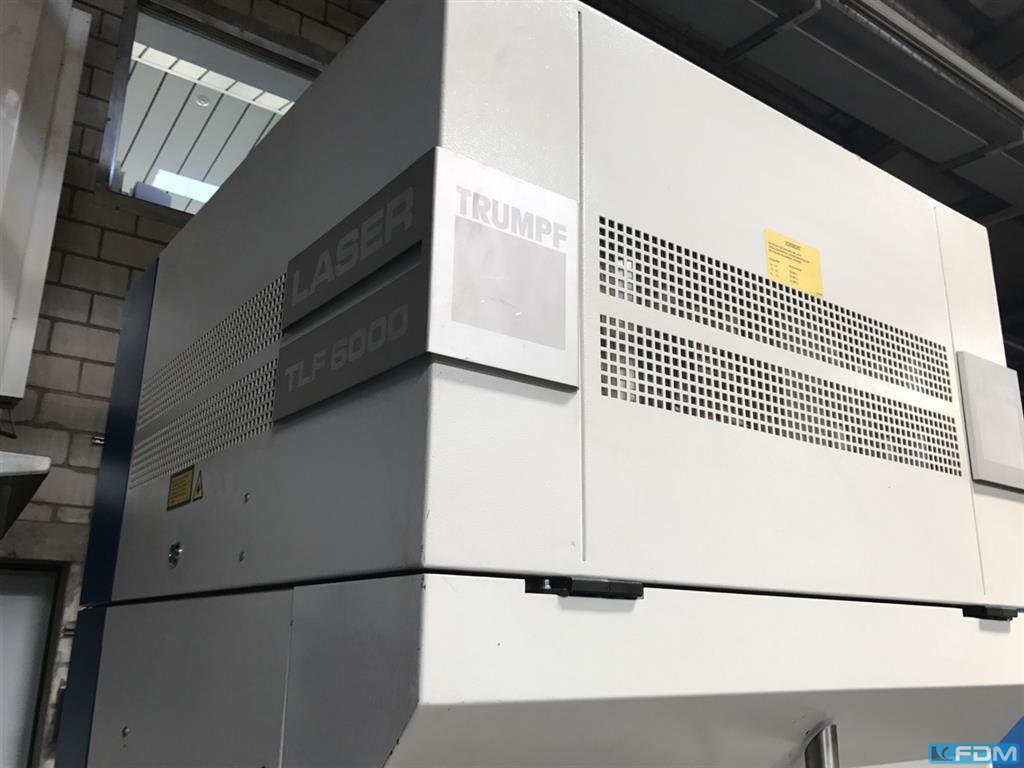

- CO2 laser TLF radio-frequency excited, mirror telescope, chiller

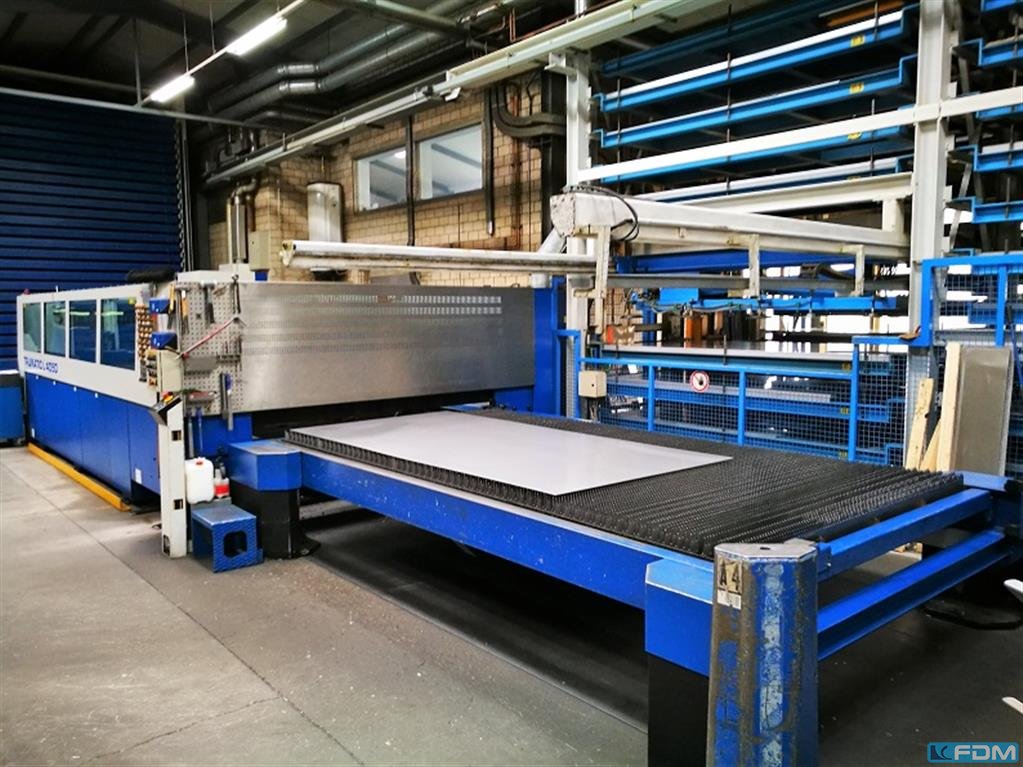

- Automatic pallet change
- HI-LAS high pressure cutting
- Plasma sensor system
- High-speed processing with SprintLas
- ContourLas for producing small holes
- Microweld
- MDE interface
- Programmable cutting gas pressure setting

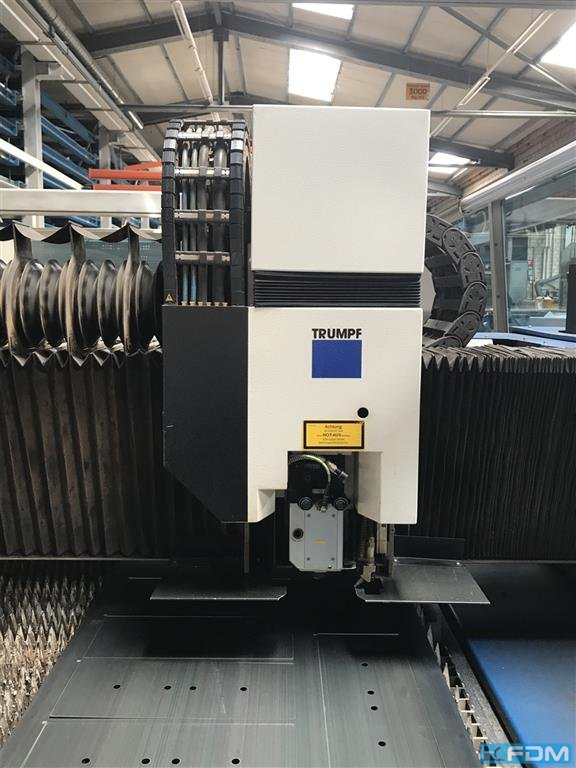

- Laser cutting head with 5” lens
- Laser cutting head with 7.5” lens
- Laser cutting head with 10" lens for thick material

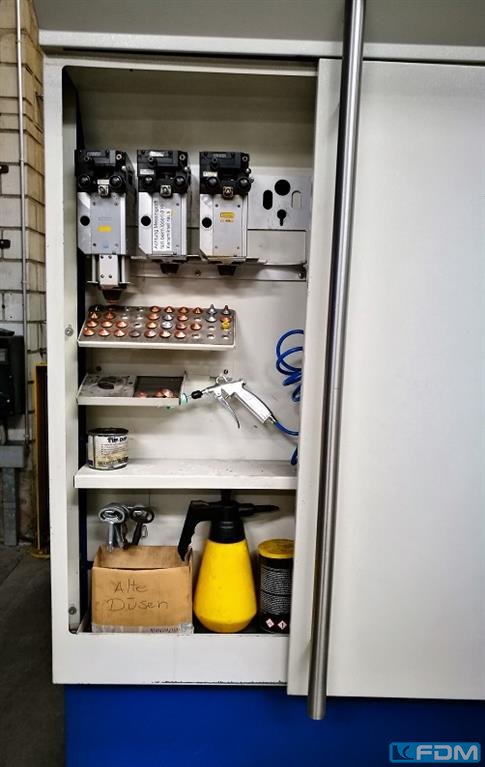

- Cutting head quick-change device
- Programmable power cycles
- Positioning laser diode
- Automatic sheet edge detection
- Automatic focus setting AutoLas Plus
- Oil spray device for reliable thick plate machining
- Laser logbook function
- Automatic shutdown
- Work area lighting

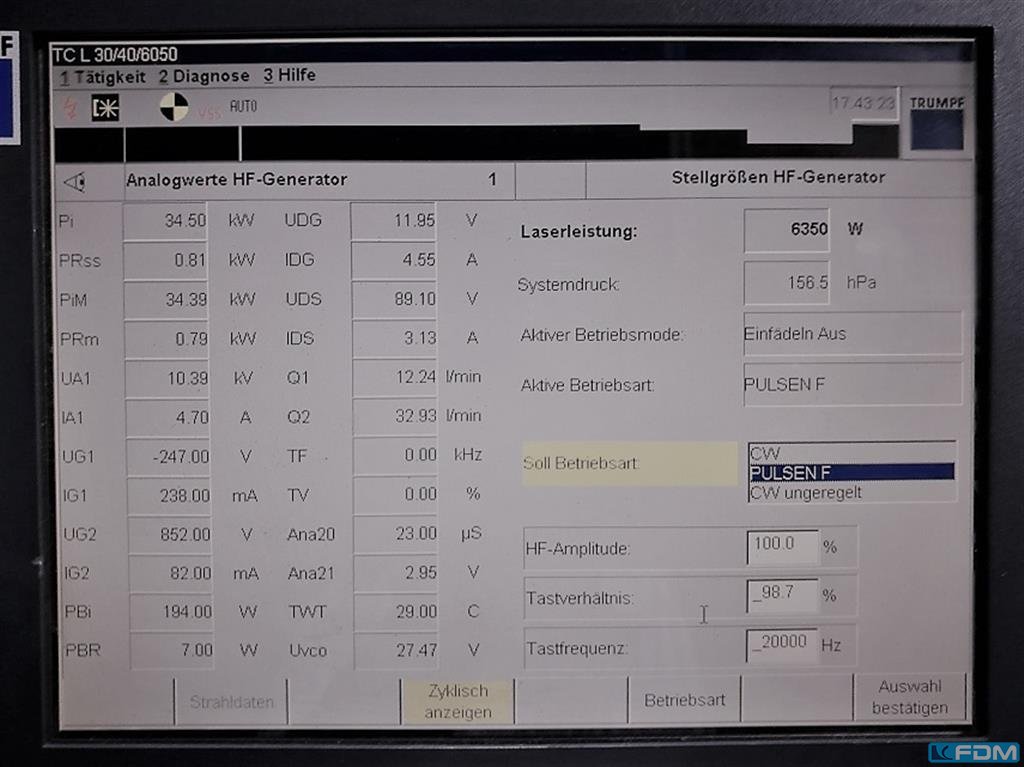

Sinumerik 840D control:
- Open PC-based control system, easy to use, Online help, diagnostic functions, maintenance logbook, technology data, Teleservice, 3.5" disk drive, BNC-/RJ45 connection
- Shopfloor programming ToPs 100 lite

Safety:
- Multi-beam light barriers
- completely encapsulated and purged beam delivery
- monitoring system
- safety cabin
